CL 8 36

CL-8-36

 CL-8-36

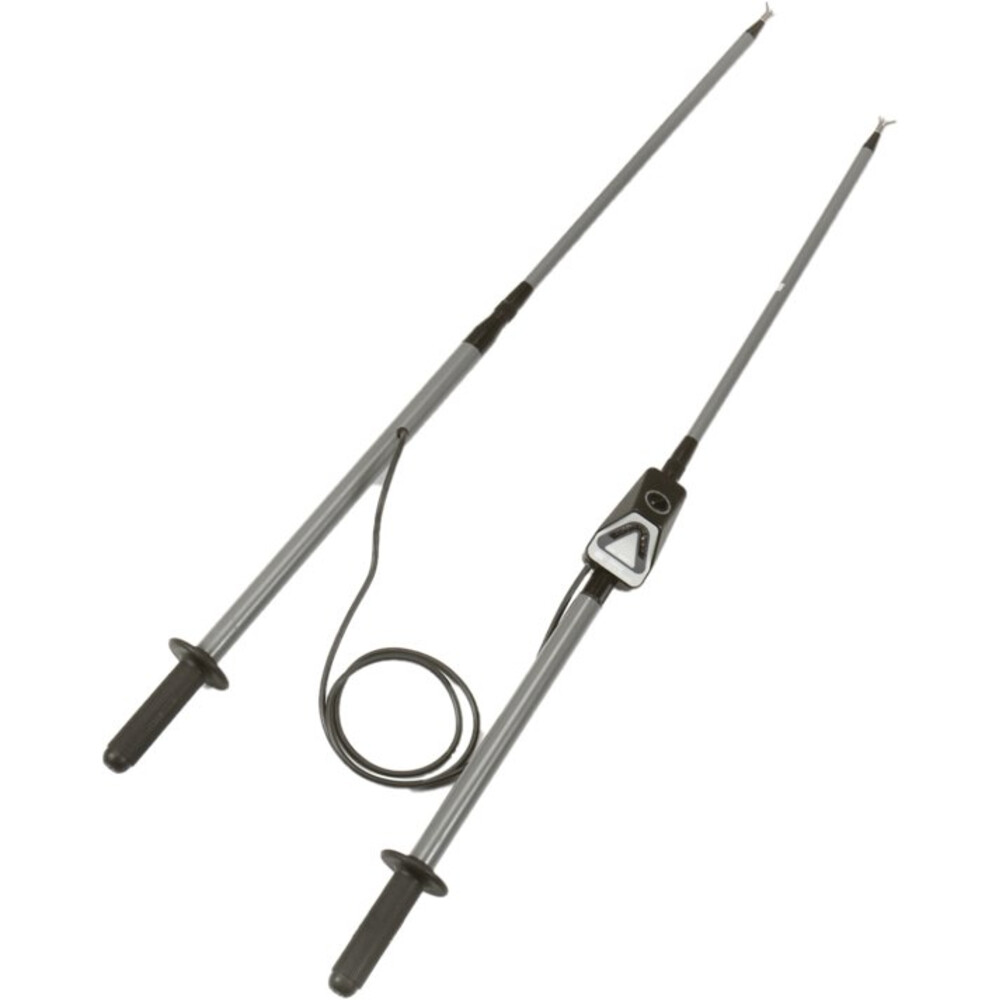

Bipolar Phase Matching Controller

Application:

  • Bipolar controllers can see potential differences between any two points of a High Voltage installation.
  • Mainly reserved for finding drivers of the same phase (matching), they can also be used for bipolar detection and High Voltage fuse verification

Caracteristics:

  • Potential difference signaled by high luminosity LED lighting.
  • Voltage range: 2 - 36 kV
  • Maximum operating distance: 2.25 m (with antenna extensions).
  • 2 1.25 m elements with connected detachable antennas. by flexible cord of quality HT.

Composition:

  • 2 elements of 1.25 m with detachable antennas, length 0.62 m with disassembled antennas, connecting cable length 1.5 m.
  • Controller in plastic case of 0.95 m x 0.2 5m x 0.1 m.

Accessories in options :

  • Réf. C-92-20: Replacement antenna length 0.55 m.
  • Réf. CL-8-05: Extension antenna length 0.55 m.

user guide1



Reference Dimensions (mm) Weight (kg) Voltage
CL-8-36 250 x 950 1,1 2 - 36 kV
