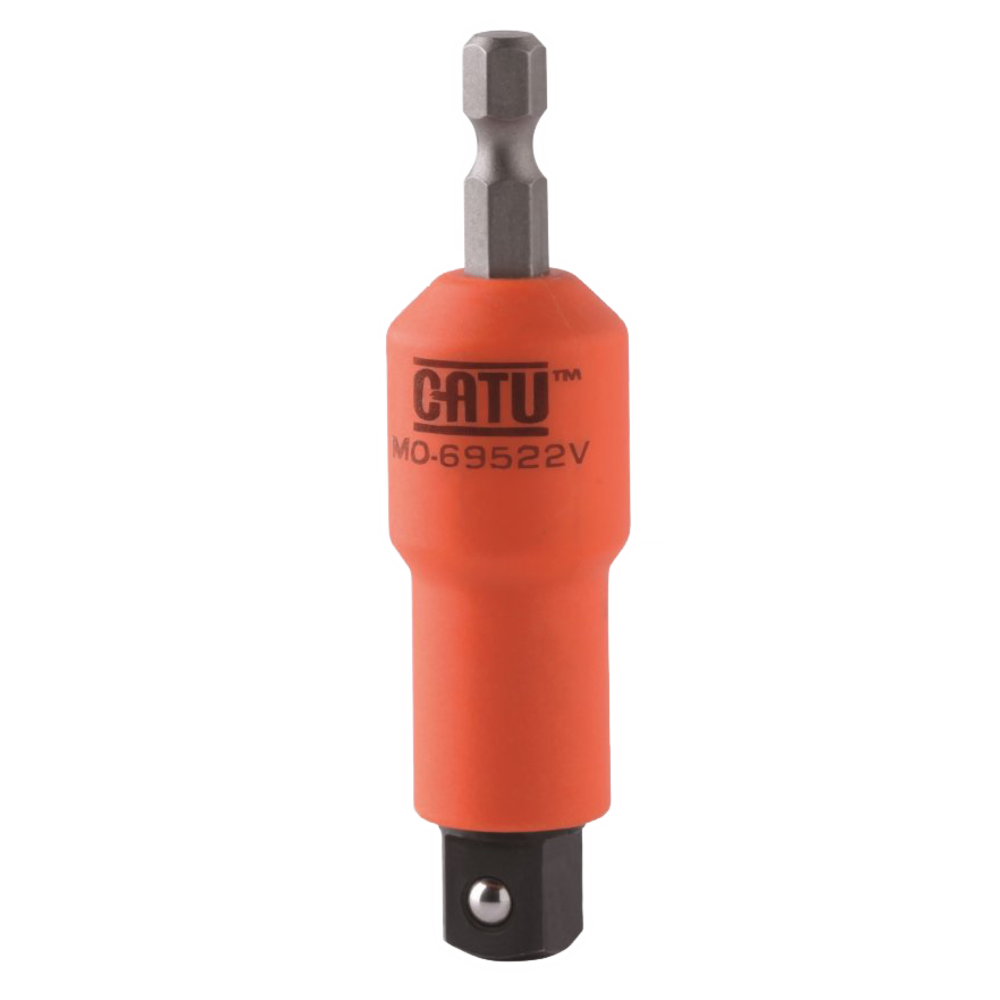

MO 69522 V1

MO-69522-V1MO-69522-V1

 MO-69522-V1

Standards
IEC / EN 60900
Insulating adaptor

Application :

  • Insulated adapter, with 6mm hexagonal male end and 3/8" square drive
  • For use with MO-7200-DYN torque screwdriver.
  • Insulated tool for use at maximum voltages of 1000 V AC and 1500 V DC.

Features :

  • The adapter allows insulated sockets (3/8" square drive) to be used with the MO7200DYN torque screwdriver while maintaining electrical insulation between the socket and the screwdriver
  • No electrical continuity between the 6mm hexagonal drive and the 3/8" square drive for socket attachment.
  • Maximum recommended torque on screwdriver: 40N.m.
  • 6mm male hexagonal drive on one side for attachment to MO-7200-DYN.
  • Usable length for attachment: 20mm.
  • 3/8‘ (9.5mm) male square drive for attaching 3/8" sockets.
  • Maximum diameter on insulator: 20.5mm.
  • Total length: 79mm
  • Weight: 66g
  •

user guide1



Video Video
Reference Weight (kg)
MO-69522-V1 0.066
