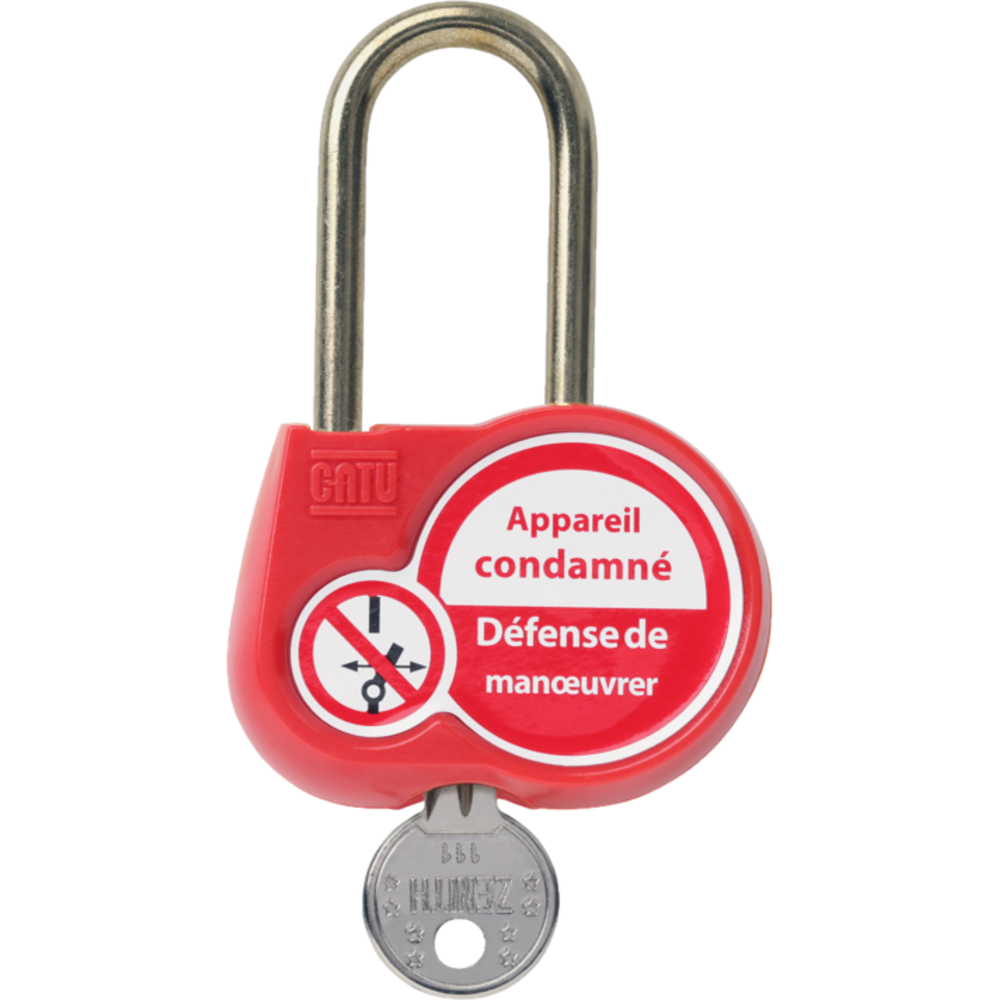

Red safety padlock, brass shackle 50 mm, diameter 6 mm

Application:

  • For locking separating devices (e.g. circuit breakers) in order to prevent their operation.


Features:

  • Available with keys alike, keys different (Z) or with a key number to be defined (00).
  • Marking on both sides:
  1. On one side: French text and standard symbol.
  2. On the other side: area for marking the user's name and coordinates.
  • Padlock delivered with 2 keys.

Complete the reference with the chosen key number.

Example: AL-230-111 for the red padlock with the shackle H 50 mm and the identical key n°111.

Data Sheet



20 Products found
References Color KeyNumber Ø Shackle (mm) Dimensions (mm) Weight (kg)
AL-230-111
 		111 6 100 x 65 x 25 0,205
AL-230-222
 		222 6 100 x 65 x 25 0,205
AL-230-333
 		333 6 100 x 65 x 25 0,205
AL-230-444
 		444 6 100 x 65 x 25 0,205
AL-230-555
 		555 6 100 x 65 x 25 0,205
AL-230-666
 		666 6 100 x 65 x 25 0,205
AL-230-777
 		777 6 100 x 65 x 25 0,205
AL-230-888
 		888 6 100 x 65 x 25 0,205
AL-230-999
 		999 6 100 x 65 x 25 0,205
AL-230-1111
 		1111 6 100 x 65 x 25 0,205
AL-230-2222
 		2222 6 100 x 65 x 25 0,205
AL-230-3333
 		3333 6 100 x 65 x 25 0,205
AL-230-4444
 		4444 6 100 x 65 x 25 0,205
AL-230-5555
 		5555 6 100 x 65 x 25 0,205
AL-230-6666
 		6666 6 100 x 65 x 25 0,205
AL-230-7777
 		7777 6 100 x 65 x 25 0,205
AL-230-8888
 		8888 6 100 x 65 x 25 0,205
AL-230-9999
 		9999 6 100 x 65 x 25 0,205
AL-230/00
 		00 6 100 x 65 x 25 0,205
AL-230-Z
 		Z 6 100 x 65 x 25 0,205

Related Products

AP-467

PVC warning badge "LOCKING APPARATUS" in french Ø 80 mm

View
AL-212

PVC padlocks and tags carrier (x 12 padlocks)

View
ALM...

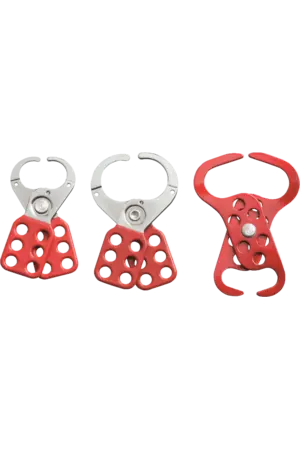

Red metallic hasp for a multiple locking
