Our product selection




  2. Products
  3. Earthing rods
  4. A3MC-15Z

A3MC 15Z

A3MC-15ZA3MC-15Z

 A3MC-15Z

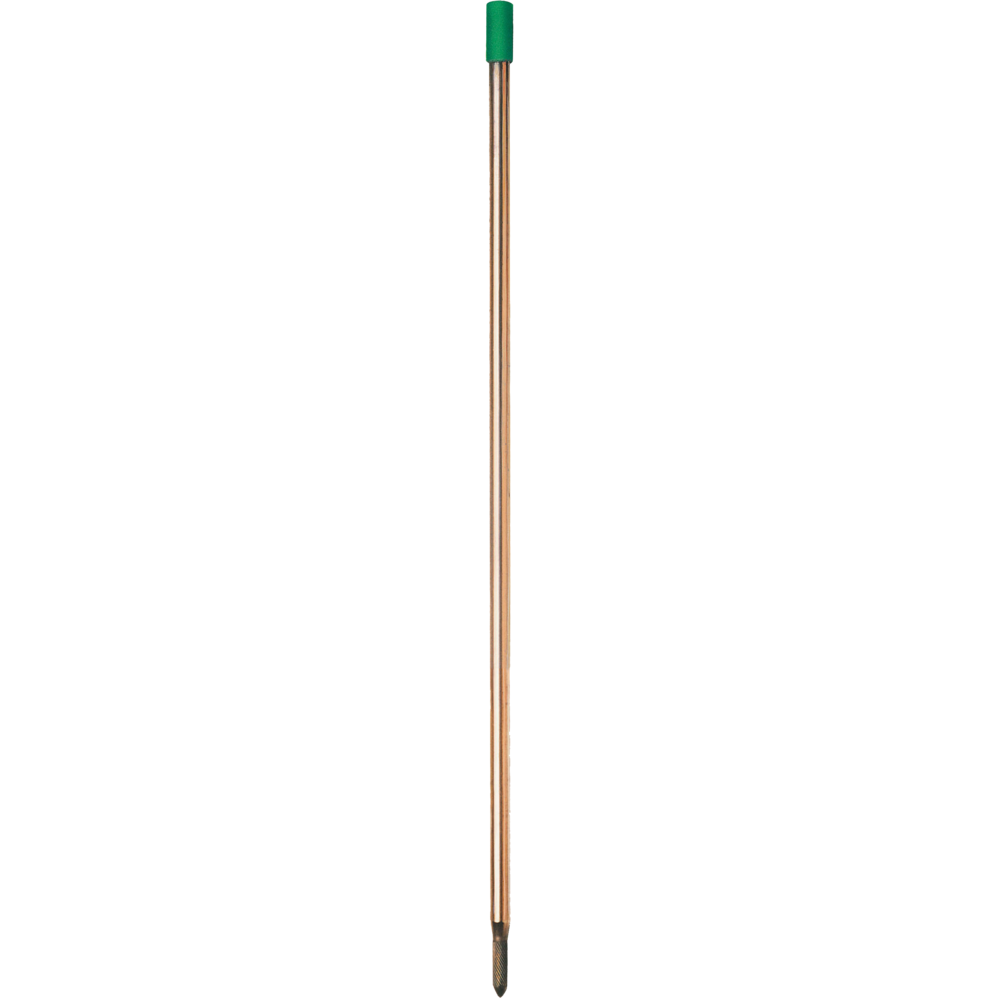

Self-extending copper-steel rods (round shape, module 19, ø 17.3 mm)

Application:

  • For the evacuation of fault currents to earth.
  • Self-extending rods: the lower end of each rod has a point intended both for driving in and connecting; the upper end is pierced, receiving, without any sleeve, the point of the previous rod.

Features:

  • Steel with copper electroplating: minimum thickness 350 μm
  • Resistance: ≥70 daN/mm2

Accessories :

  • Driving pins: CH-MZ, CH-LMZ and CH-MP
  • Connection terminals: C2C-95Z, TO-2-19 et TO-3-16/19



Data Sheet



Référence Length (mm) Weight (kg)
A3MC-15Z 1 500 2,75
