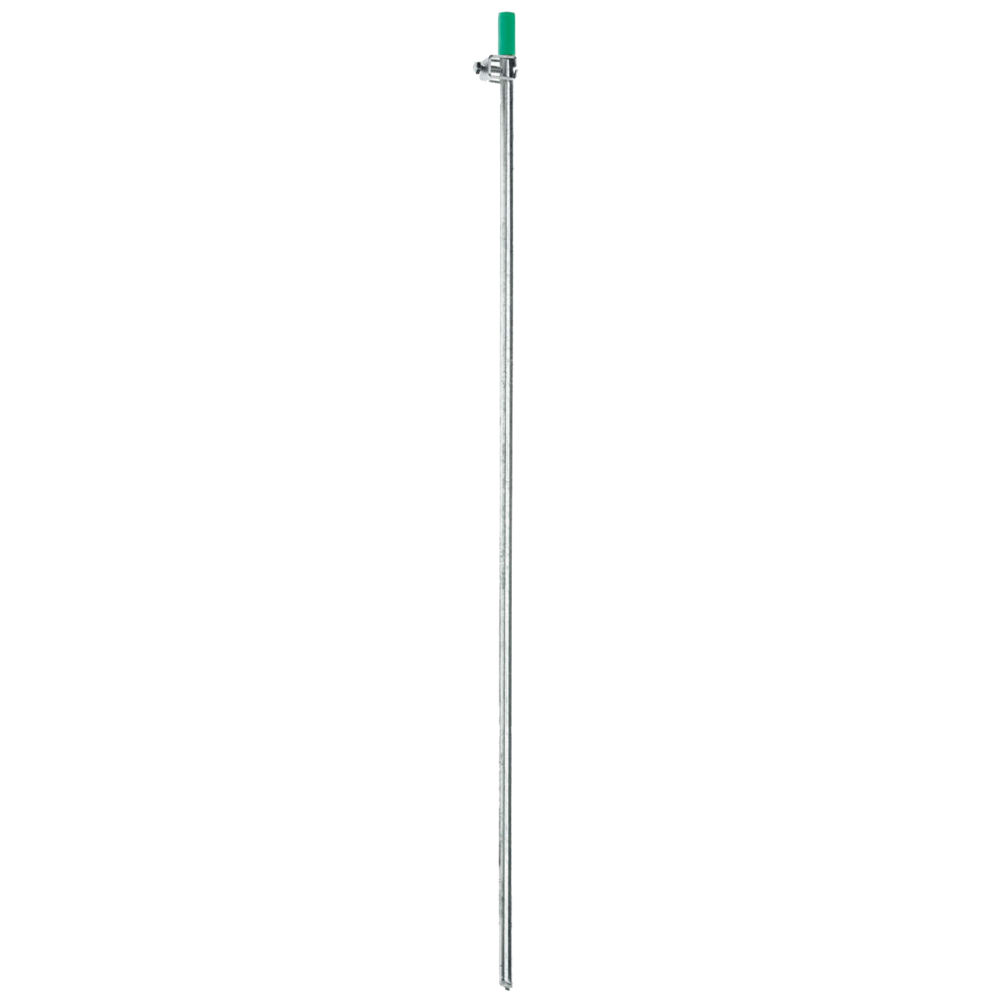

Standard galvanized steel earthing rods (clover shape, ø 16 mm)

Application:

  • For the evacuation of fault currents to earth.
  • Non-extendable rods: delivered with mounted D connector.

Features:

  • MAde of steel. Galvanization : according to EN ISO 1461 (average thickness 85 μm)
  • Mechanical resistance: ≥70 daN/mm2

Accessories:

  • Driving pins: CH-L (small), CH (large), CH-MP (with handle)

Data Sheet



3 Products found
Référence Length (mm) Weight (kg)
DBXO-10 1 000 1,15
DBXO-15 1 500 1,73
DBXO-20 2 000 2,23
