  4. MC-296-A

MC 296 A

MC-296-AMC-296-A

 MC-296-A

Standards
IEC 61230
Earthing and short-circuiting equipment for LV connection & network switchboards

Application :

  • Earthing and short-circuiting equipment for cabinets and branchement LV.
  • Icc : 4 kA/1s.

Features:

  • Complete set according ENEDIS specification.
  • Delivered in plastic carrying case.

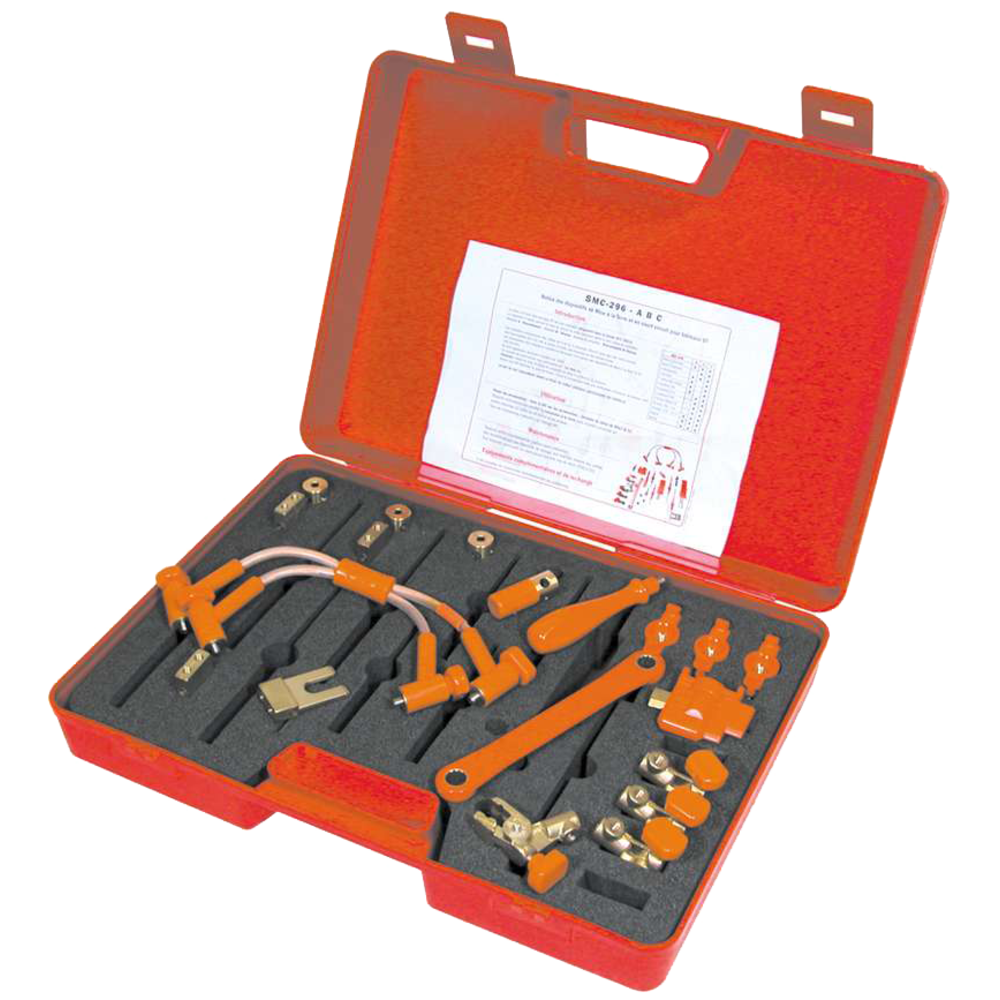

Composition :

  • 1 earthing and short-circuiting assembly with 4 branches made of copper cable with silicon insulation, cross-section 16 mm².
  • 4 forked connectors M956274.
  • 4 micro-clamps MC296P.
  • 4 cylindrical connectors type cartridge M956264
  • 4 insulated fuses size 00 MC2960008
  • 4 cylindrical connection points threaded M8 MC182.
  • 4 cylindrical connection points M12 MC181.
  • 1 insulated wrench at 4 dimensions : 13, 14, 16, 17 mm MO687D
  • 1 insulating handle MC296M.
  • 1 carrying case.





1 Products found
Reference Dimensions (mm) Weight (kg)
MC-296-A 520 x 370 x 125 3,2
