MT 66131

MT-66131MT-66131

 MT-66131

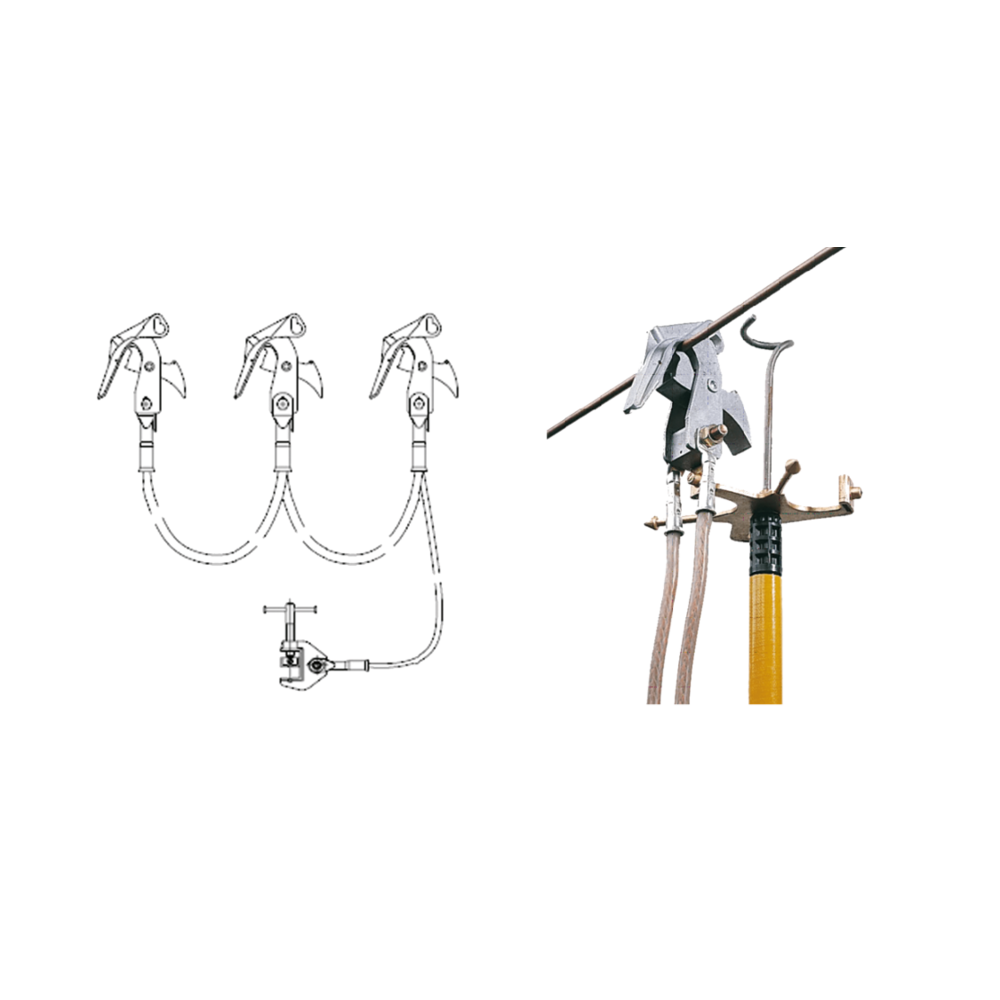

Earthing and short circuiting equipement for overhead LV network

Application :

  • LV Earthing and short circuiting equipement for overhead network.
  • Icc 20 kA/1s.

Composition / Features :

  • 3 x Pre-armed earthing and short-- circuiting clamps MT-613. Capacity conductor diameter 5-30 mm.
  • 1 x Earthing clamp MT-840-1. Capacity round conductor diameter 6-25 mm / flat bars 0-25 mm.
  • 1 x Earthing and short circuiting clamp holder tray MT-635/1-C.
  • 2 x Junctions bettwen phases in 95 mm² insulated copper cable. Length: 3 m.
  • 1 x Junction to earth in 35 mm² insulated copper cable. Lenght: 15 m.
  • 1 x Bag M-87295.

Data Sheet



1 Products found
Reference
MT-6613/1
