MT 9804

MT-9804MT-9804

 MT-9804

Standards
IEC 61230
Earthing and short-circuiting equipment, Icc 10 kA/1s

Application :

  • Earthing and short-circuiting equipment for station.
  • Icc 10 kA/1s.

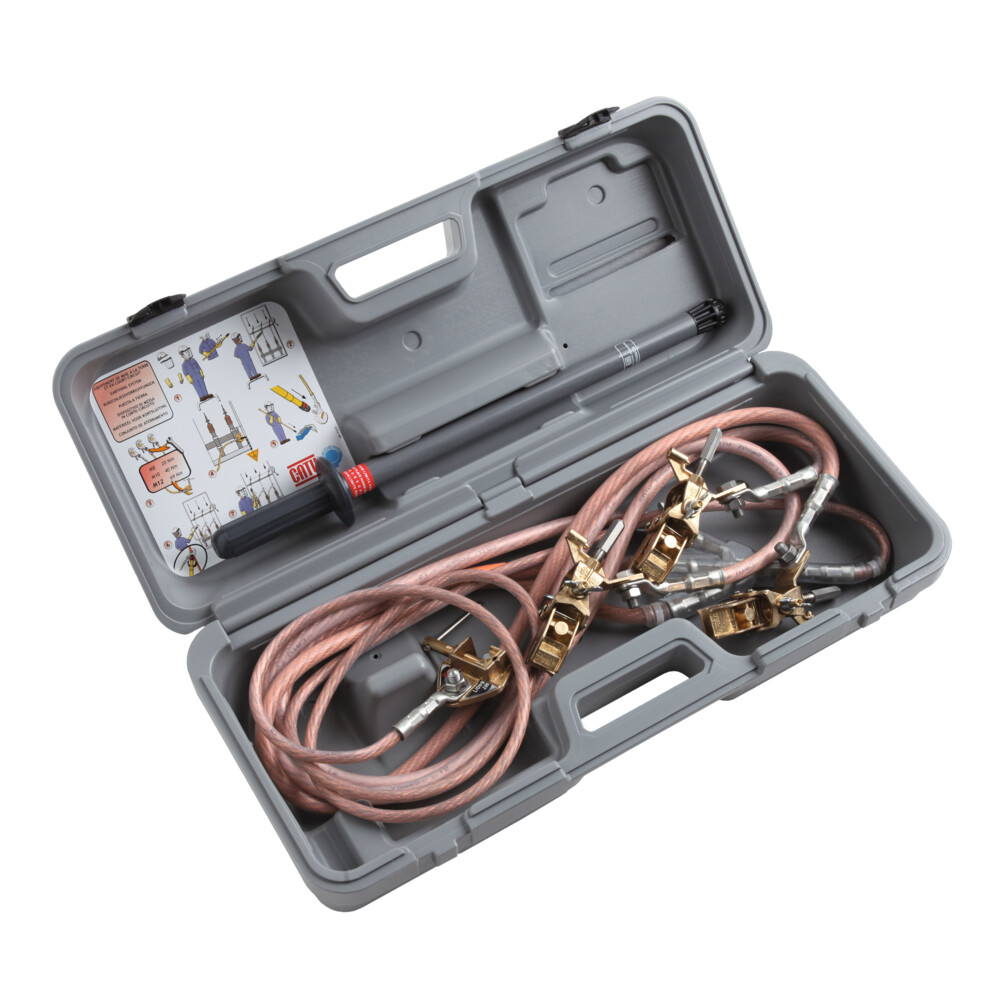

Features / Composition :

  • 3 clamps MT812C. Capacity: diameters from 5 to 16 mm and flat up to 16 mm thickness.
  • 3 clamps MT813C. Capacity: flat 40 x 16 mm.
  • 3 clamps MT8142. Capacity: diameters from 5 to 28 mm.
  • 1 earth clamp MT840. capacity: diameters from 6 to 25 mm and flat up to 25 mm thickness.
  • 3 silicone-insulated copper short-circuit cables, 40 mm² cross-section, 0.75 m long.
  • 1 silicone-insulated copper earthing cable section 40 mm², length 2 m.
  • 1 telescopic pole MT830P.
  • 1 carrying case.





1 Products found
Reference Dimensions (mm) Weight (kg)
MT-9804 720 x 300 x 175 12
