MX 701


 MX-701

Standards
IEC 61010-1

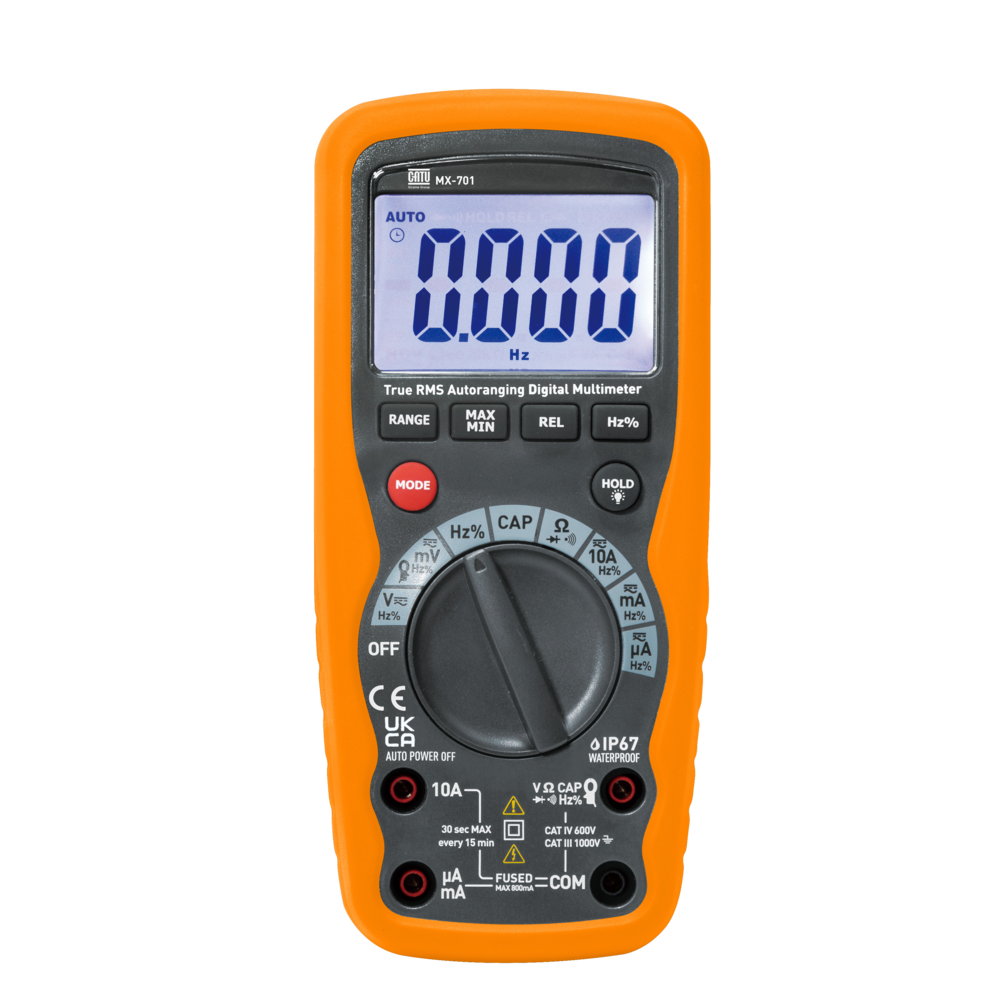

Digital multimeter TRMS

The MX-701 is a multimeter with a 6000-dot LCD display with function indication.
It measures voltages up to 1000 V AC and V DC, AC and DC currents up to 10 A, as well as resistances, capacitances and frequency.
It can also be used to check electronic transistors.

User-friendly, the MX-701 features auto-calibration, automatic switch-off, max. value measurement, value storage and backlighting.

Application:

  • Measures voltage (AC/DC), current (AC/DC), resistance, capacitance and frequency.
  • DC voltage: 60/600 mV /6/60/600V/1,000 V ± (0.9% + 5d), 1,000 V ± (0.6% + 6d)
  • AC voltage: 60/600 mV /6/60/600V/1,000 V ± (0.8% + 3d), 750 V ± (0.8% + 8d)
  • DC current: 600/6000μA/60/600A/6000/10A ± (1.5% + 3d)
  • AC current: 600/6000μA/60/600A/6000/10A ± (1.5% + 3d)
  • Resistance: 600Ω ± (1.0% + 2d), 6KΩ/60KΩ/600KΩ ± (0.8% + 2d), 6MW ± (1.2% + 2d), 60MW ± (1.0% + 5d)
  • Continuity: Audible threshold: less than 50 Q
  • Capacitance (auto range): 0.1 Nf/ 0.001 / O.O M, 0.1/ 0.001/ O.O1 MfF±(4.0% + 5d)
  • Diode test: Test current 1.5mA max.

Features:

  • IEC 61010-1 CAT III 1 000 V, CAT IV 600 V
  • Operating temperature: 0 to + 50°C, < 70% RH
  • Storage temperature: -20 to +60°C, <80% RH
  • IP67 impact-resistant housing
  • TRMS function
  • Continuity and diode test: yes
  • LCD display with backlight
  • Relative zero
  • Mx/min recording mode and data retention
  • Automatic power-down
  • Batteries: 6 x 1.5 V (AA) (not included)
  • Low battery indicator
  • Dimensions: 182 x 82 x 55 mm
  • Weight: 360 g (with batteries)

Composition :

  • 1 multimeter in cardboard box
  • 2 test probes with angled connector IP2X
  • 1 user's guide



Calibrate your products every year at one of our Service Centers

Data Sheet Doc EU



Reference Dimensions (mm) Weight (kg) Category
MX-701 182 x 82 x 55 mm 0,36 CAT III 1 000 V CAT IV 600 V
