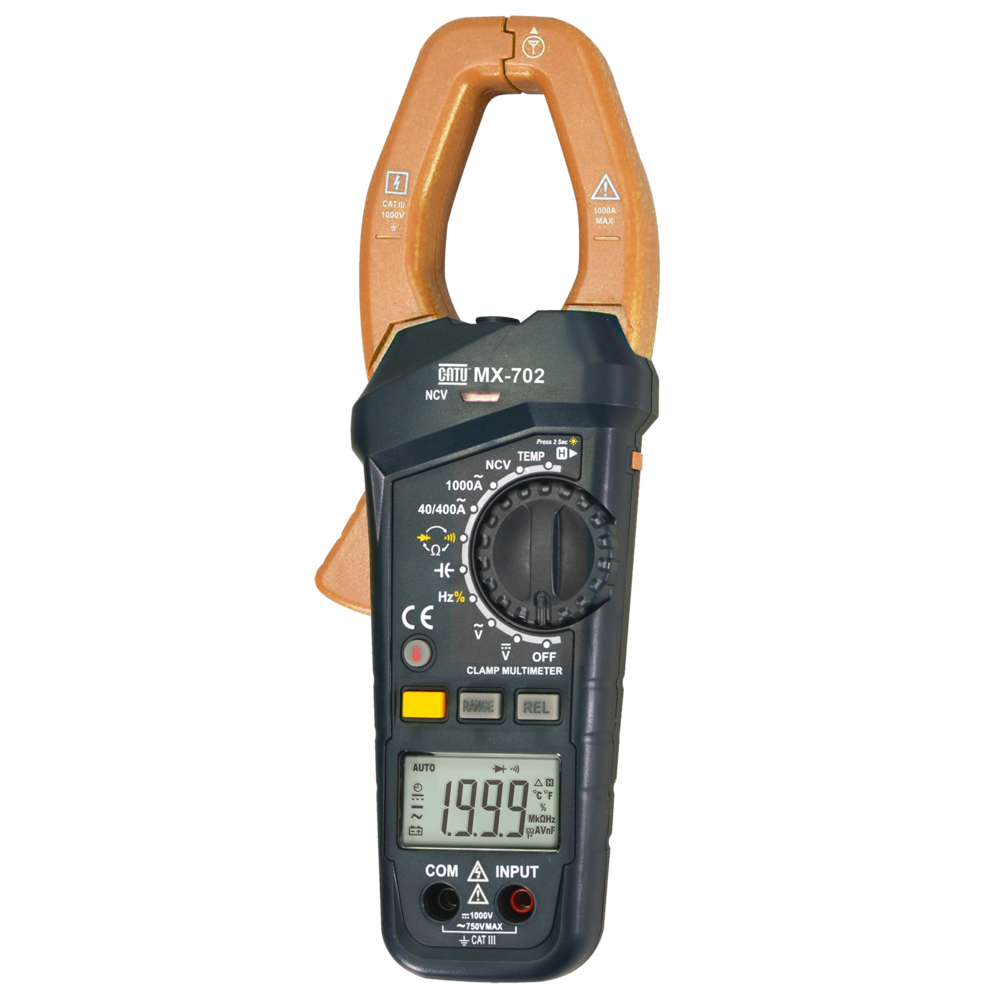

MX 702

MX-702MX-702

 MX-702

Digital Clamp Meter

Application:

  • Digital clamp meter compact (3 ½ digit) with autorange for measuring DC and AC voltage, AC current, resistance, diode, continuity and temperature.
  • AC current: 0,01 A  – 1 000 A.
  • AC voltage: 4 V – 750 V.
  • DC voltage: 4 V – 1 000 V.
  • Resistance : 400 Ω - 40 MΩ.
  • Continuity: buzzer (>150 Ω).

Features:

  • Cat III 600 V.
  • Display: 3 3/4 digit LCD with a max. reading of 1999.
  • Polarity: auto polarity indication.
  • Automatic zeroing function.
  • Jaw opening capability: about 50 mm.
  • Battery: 3 x 1,5 V AAA batteries.
  • Low battery indication.
  • Operation temperature: -20°C / 1 000°C.
  • Storage temperature: -30°C / 60°C.
  • Supplied with a soft carrying case.

Composition :

  • 2 test probes with angled connector
  • 1 thermometric probe







Doc EU



1 Products found
Reference Frequency Dimensions (mm) Weight (kg) Category
MX-702 10 Hz - 10 MHz 243 x 87 x 44 0,374 III - 1 000 V
