 MC-296-NFC

Standards
IEC 61230

Earthing and short-circuiting equipment for industrial LV switchboards

Application :

  • Earthing and short-circuiting equipment for low volltage cabinets and industrial installations.
  • Icc : 4 to 10 kA/1s.

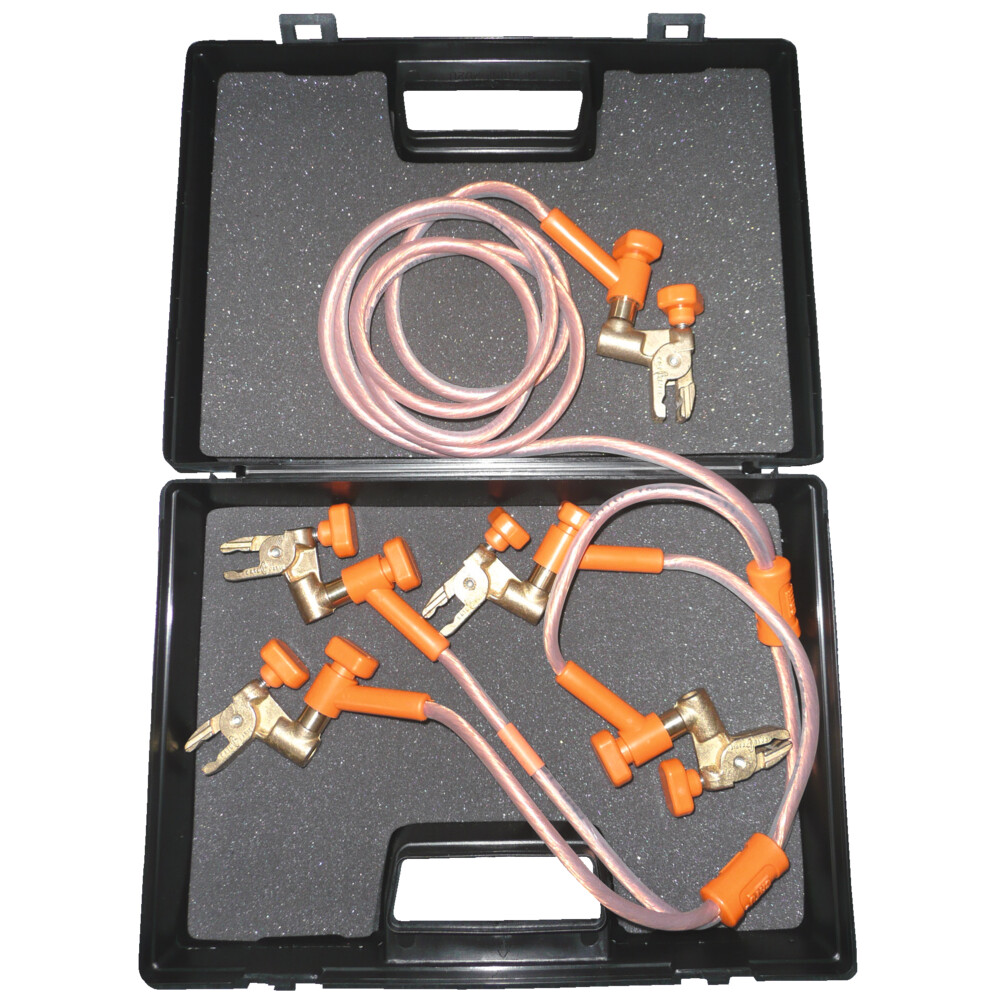

Composition :

  • 1 earthing and short-circuiting assembly with 5 branches made of copper cable with silicon insulation, cross-section 16 mm².
  • Cable lengths between phases : 250 and 300 mm. Earthing cable length: 2 m.
  • 5 micro-clamps MC300
  • 1 plastic carrying case.

Data Sheet




Reference Dimensions (mm)
MC-296-NFC 310 x 280 x 105
