DX 02016

DX-02016DX-02016

 DX-02016

Standards
 IEC EN 61010-031

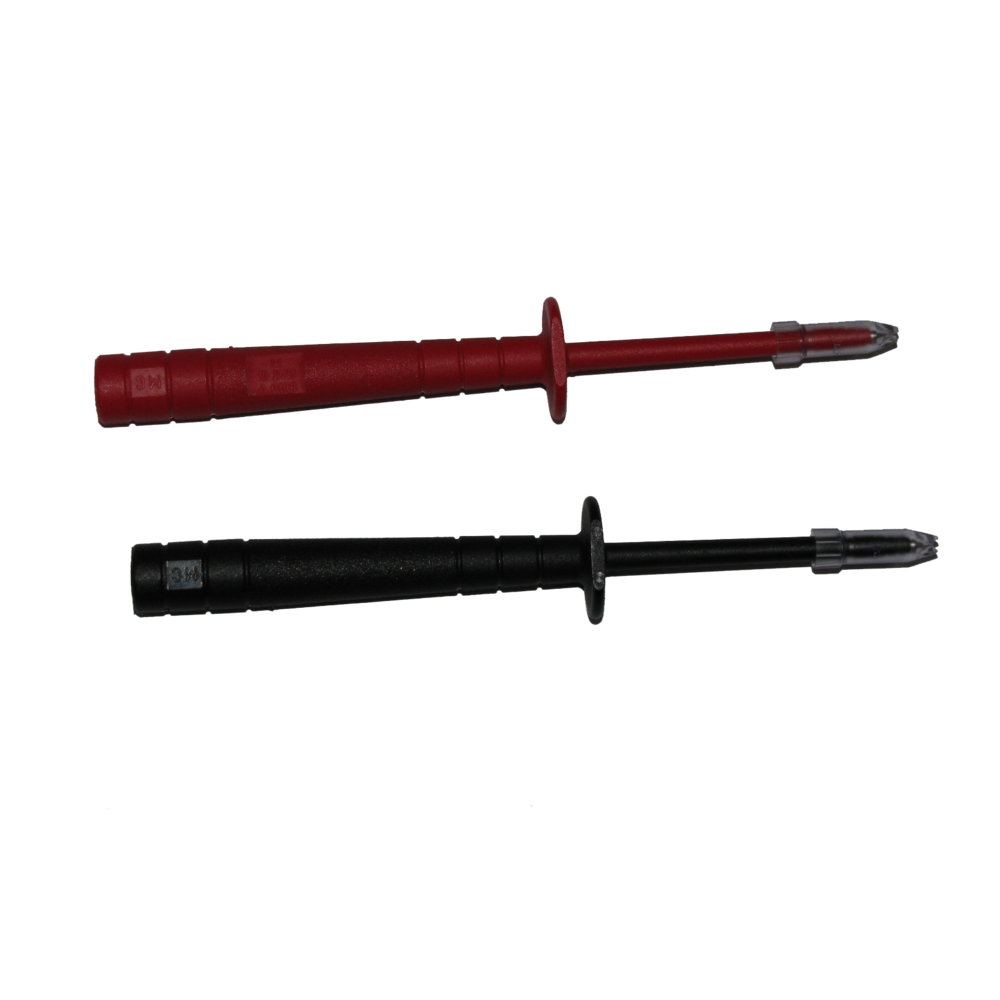

2 test lead points

Application:

  • 2 IP2X test lead points for low voltage detectors where the conductor to be tested is difficult to access.
  • They are adaptable to Ø 4 mm IP2X tips and to Ø 4 mm male IP2X leads.

Fetaures:

  • Maximum current <= 1 A.
  • Total length: 140 mm.
  • Operating temperature: -10° to + 55°C.
  • CAT III 1000 V.
  • IP2X if protective cap is fitted.

Composition:

  • Set of 2 pushbuttons: 1 red and 1 black.
  • At one end 4 mm IP2X female plug, the other end:1 tip contact protected by a cap.

Data Sheet



Reference Use
DX-02016 Indoor & Outdoor
