CL 40010

CL-40010CL-40010

 CL-40010

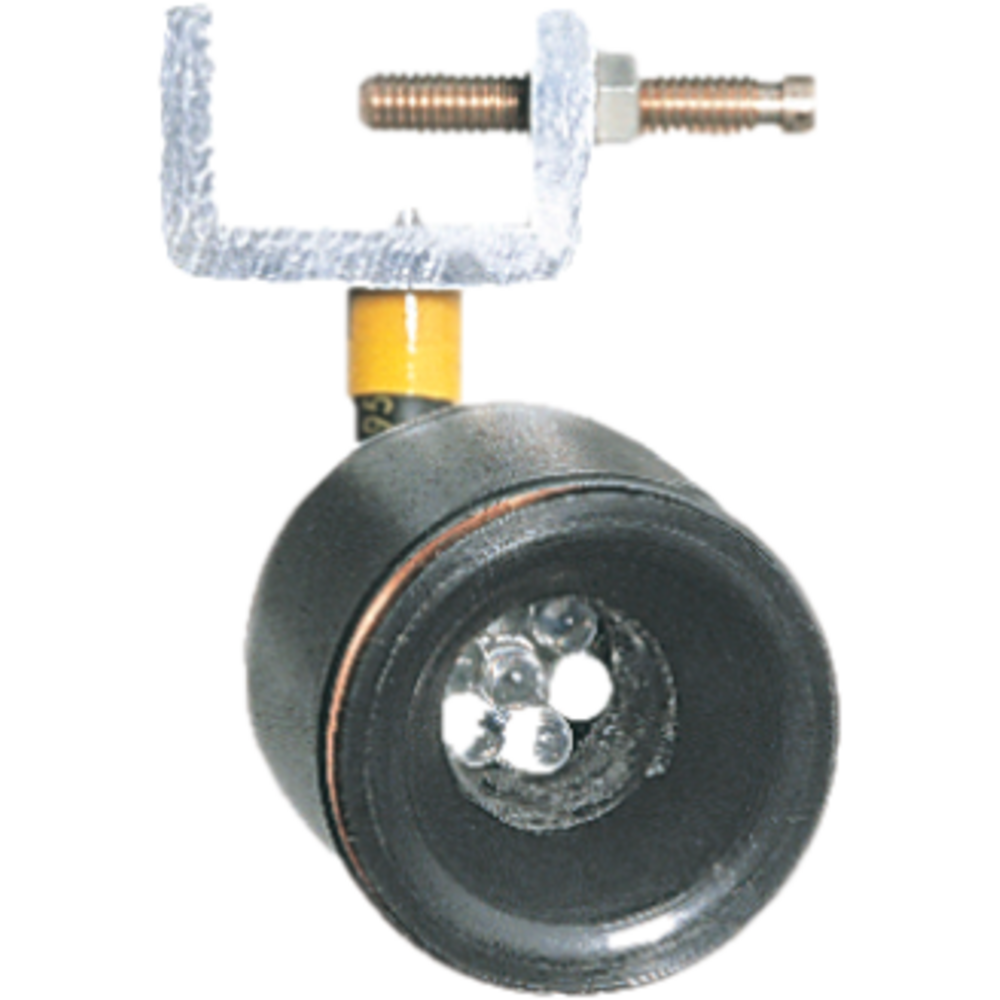

Permanent voltage indicator

Application :

  • Permanently illuminated voltage presence indicator for indoor use.

Features :

  • Single-pole indicator for voltage range from 5 to 75 kV.
  • Housing mounted on an articulated rod to adjust the orientation of the LEDs.
  • Mounting bracket suitable for conductors:
    • Round from Ø 5 to 20 mm.
    • Thickness plates from 1 to 20 mm.
  • Luminous signalling by 7 LEDs.
  • Outside diameter of the housing: 40 mm.

Composition :

  • Packed by 3 in cardboard box.

user guide1



Reference Dimensions (mm) Weight (kg) Voltage
CL-40010 ø 40 x L.110 0,23 5 - 75 kV
