  4. CC-775-6/12-22/66-C

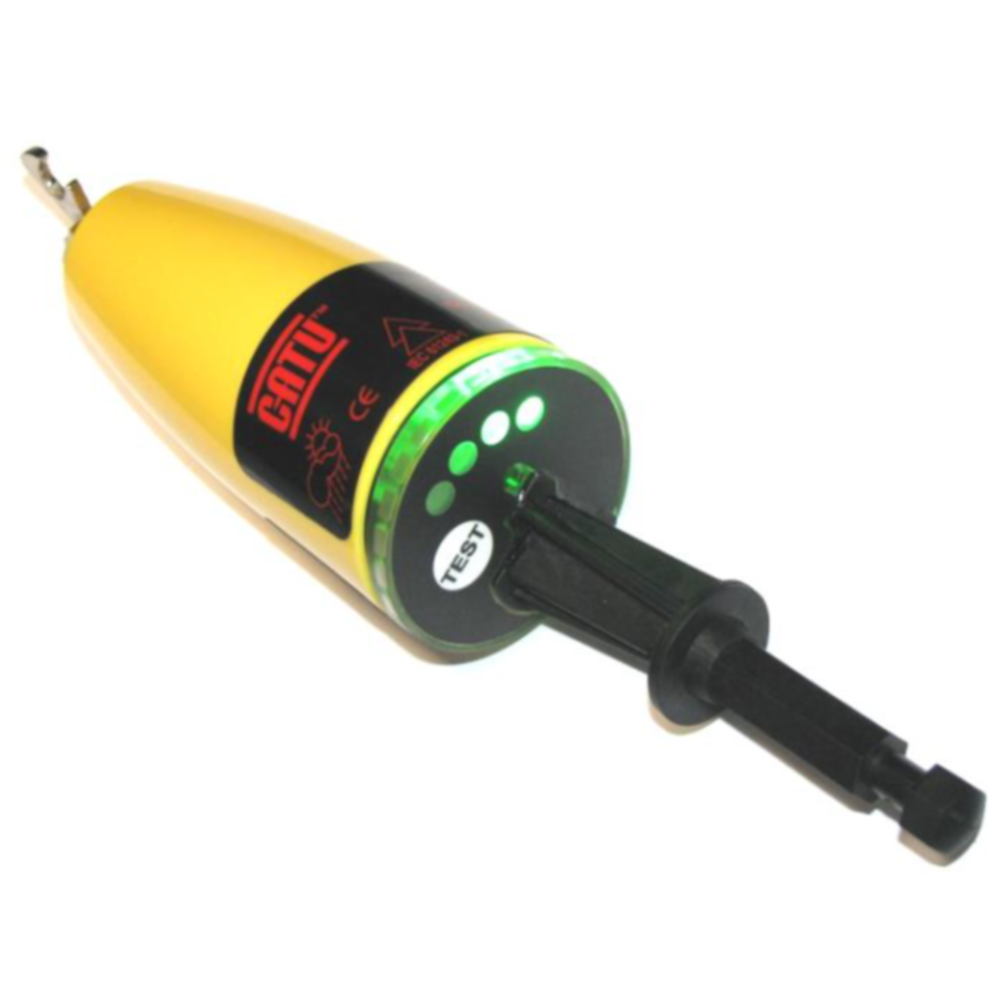

CC 775 6/12 22/66 C

CC-775-...CC-775-...

 CC-775-6/12-22/66-C

Standards
IEC 61243-1:2003 + AC1: 2005 + A1:2009
Dual voltage range detector 6-12 and 22-66 kV, C (hexagonal 12 mm) end fitting

Application:

  • Dual voltage range detector, available with two voltage ranges without manual selector switch.
  • Electronic voltage detector for indoor or outdoor use with high resistance to shock, vibration and rain.
  • Capacitive head technology, ultra compact.
  • Operates over a wide voltage range, on 50 or 60 Hz networks.

Features:

  • Robust thermoplastic housing.
  • Presence of voltage indicated by:
    • Red flashing light-emitting diodes,
    • Strong nominal acoustic signal (67 dB (A)/1.5 m),
    • 360° vision with illuminated display for optimum visibility.
  • Interchangeable contact electrodes.

Composition:

  • Supplied with an end-fitting matching the insulting stick terminal:
    • C: hexagonal 12 mm for sticks with C fitting,
    • K: universal for sticks with K fitting.
  • Supplied with a shock-proof case with handle.

Optional accessories:

Data Sheet user guide1



Reference Fitting Voltage range Frequency Category Weight (kg)
CC-775-6/12-22/66-C C 6-12 kV, 22-66 kV 50 / 60 Hz L 0,35

Related Products

CE-4-08-.

Telescopic insulating stick

View
CGM-3-..

Insulating gloves with mechanical protection and Arc Flash 12 cal/cm², class 3 - 26 500 V AC, length : 360 mm

View
MO-185-BL

Insulated Arc Flash safety helmet with integrated face shield, APC 1

View
MV-223-..

Safety shoes with insulating sole, leather and high type

View
AFG-200... / AFG-100...

Jacket - Trousers - Coverall CAT'ARC APC 1 ATPV 12 cal/cm²

View

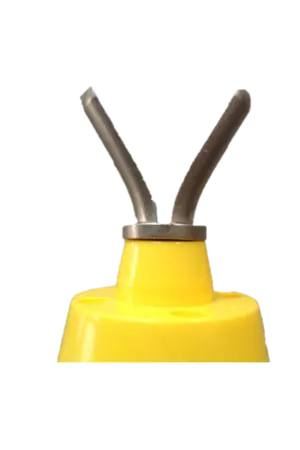

M-62500

Accessories for voltage detectors

View

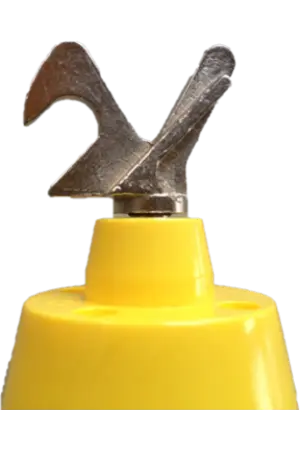

CC-365/101
