Standards

IEC 61243-1:2021

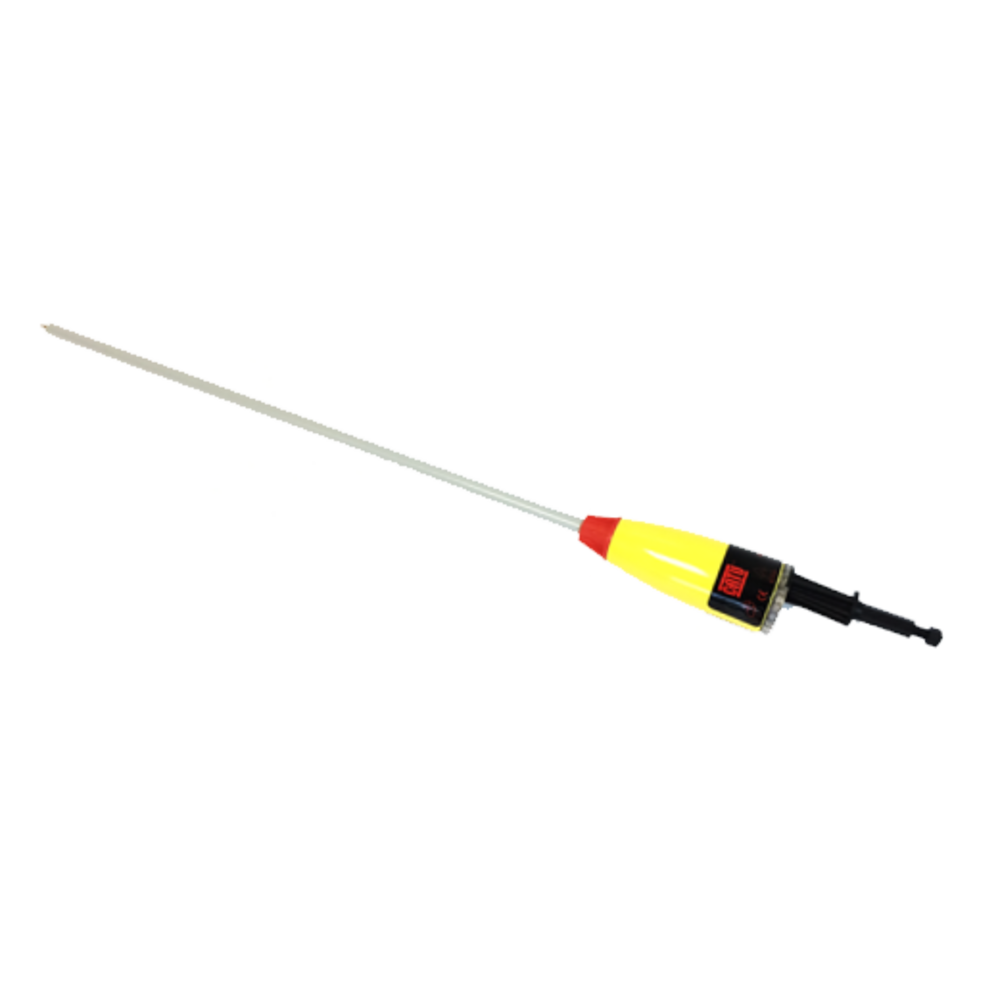

Voltage detector with probe type S (MV)

Application:

Voltage detector with integrated electrode extension to check the absence of voltage avoiding influences.
Type S (Substation): acoustic and optical signals for MV substation.
Voltage use: from 5 kV to 30 kV depending on models.
CC-965 detectors can be adapted on stick types C or K fitting.

Features:

Electrode extension length: 600 mm (or 700 mm for the CC-965-10/30* and CC-965-25*).
Built-in self test.
Robust thermoplastic housing.
Electrode extension diameter: 14 mm.
360° visual indication.
Temperature range: class N according to IEC 61243-1.
Indoor/Outdoor use and under rain condition.

Composition:

Available in various configurations:
- C : hexagonal 12 mm for sticks with C fitting,
- K : universal for sticks with K fitting,
- Other models supplied with a 680 mm fixed stick.
Electrode: C92-163 V-type
Supplied in a bag CM-1-10 (CC-965 length > 1.0 m), M-882927 (CC-965 length < 1.0 m).

Optional accessories:

CC-965 can be adapted on all sticks types: C or K fitting.

Data Sheet Doc EU

8 Products found

	Reference	Fitting	Voltage range	Frequency	Category	Weight (kg)	Length (mm)
	CC-965-5/15		5 - 15 kV	50 / 60 Hz	S	0,71	1 420
	CC-965-5/15-C	C	5 - 15 kV	50 / 60 Hz	S	0,75	800
	CC-965-10/20-V		10 - 20 kV	50 / 60 Hz	S	0,71	1 420
	CC-965-10/30		10 - 30 kV	50 / 60 Hz	S	0,71	1 520
	CC-965-10/30-C	C	10 - 30 kV	50 / 60 Hz	S	0,52	920
	CC-965-10/30-K	K	10 - 30 kV	50 / 60 Hz	S	0,52	920
	CC-965-25-K	K	25 kV	50 / 60 Hz	S	0,60	920
	CC-965-25-C	C	25 kV	50 / 60 Hz	S	0,60	920
