Our product selection




  2. Products
  3. Voltage detectors
  4. Low voltage detectors ≤ 1 000 V AC
  5. MS-803-120

MS 803 120

MS-803.MS-803.

 MS-803-120

Contact probes for L.V. detectors DETEX, test and measurement devices

Use:

  • Light and rigid contact probe for low voltage measurement or battery measurements.
  • Contact probe for low voltage detection of measurement or battery measurements.
  • Specially designed to fit into battery cap holes up to 1 mm diameter.
  • Maximum operating voltage: 1000 V AC - 1500 V DC.
  • 3 possible lengths: 400, 800, 1200 mm.
  • 2 tips to choose from to attach to the end:
    • Insulated straight tip, diameter 1 mm;
    • Insulated 90° angled tip, diameter 1 mm.

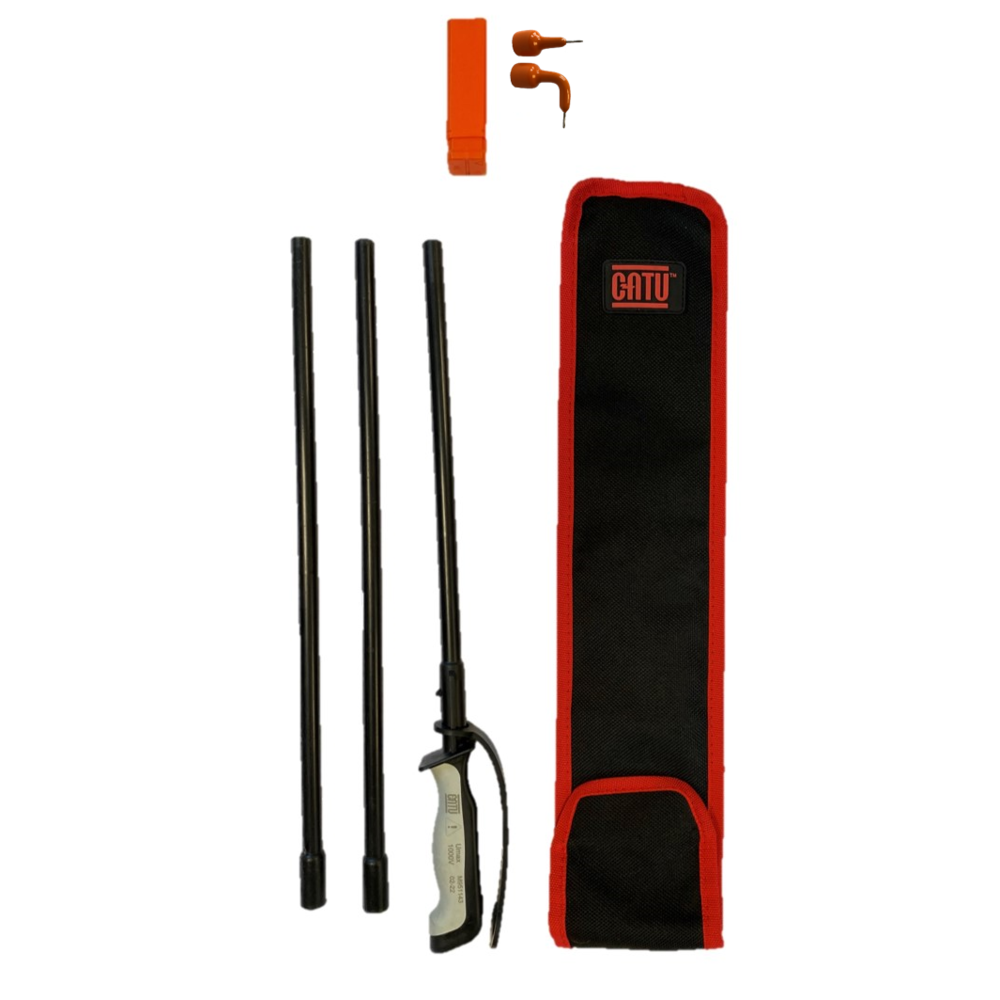

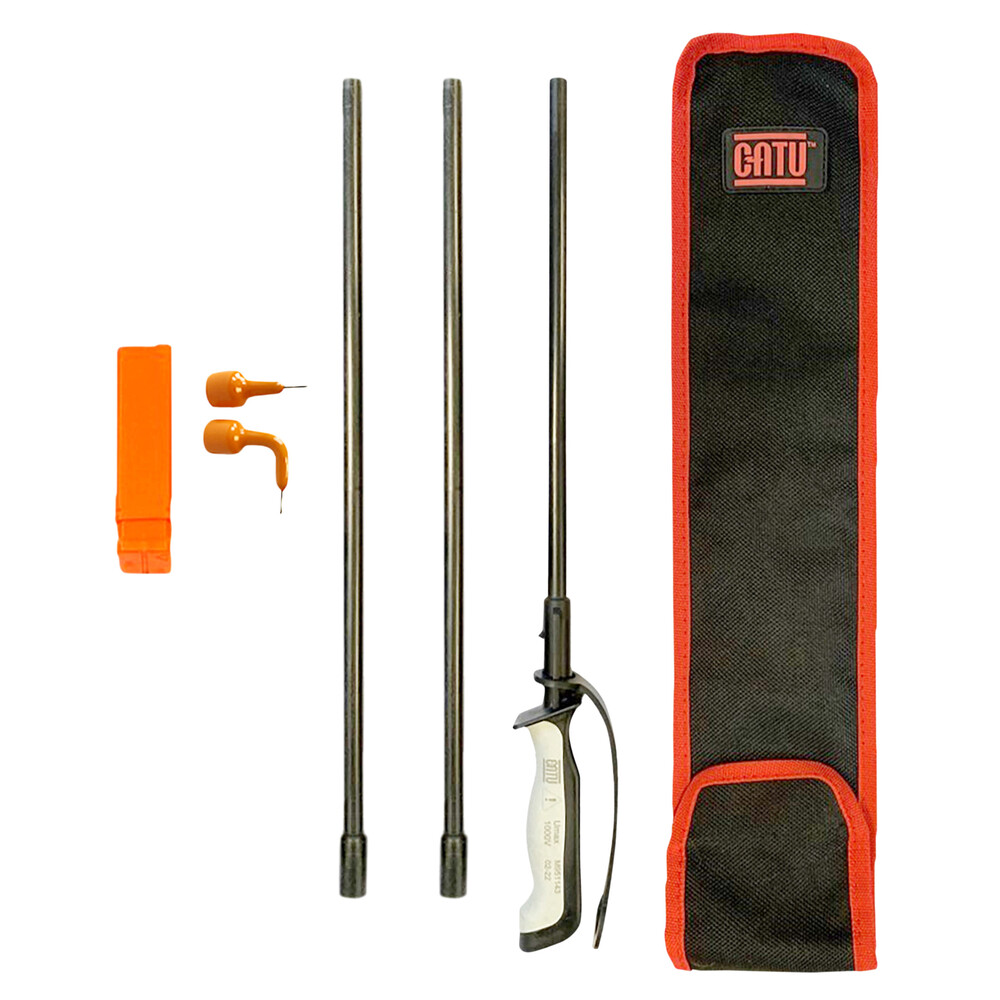

Composition:

  • 1 handle (length 400 mm).
  • 2 extensions (length 400 mm each).
  • Set of 2 contact tips delivered in a plastic box:
    • 1 insulated straight tip, diameter 1 mm;
    • 1 insulated 90° angled tip, diameter 1 mm.
  • 1 storage bag.

Fiche produit



Reference Weight (kg)
MS-803-120 0,370
