MX 701

MX-701MX-701

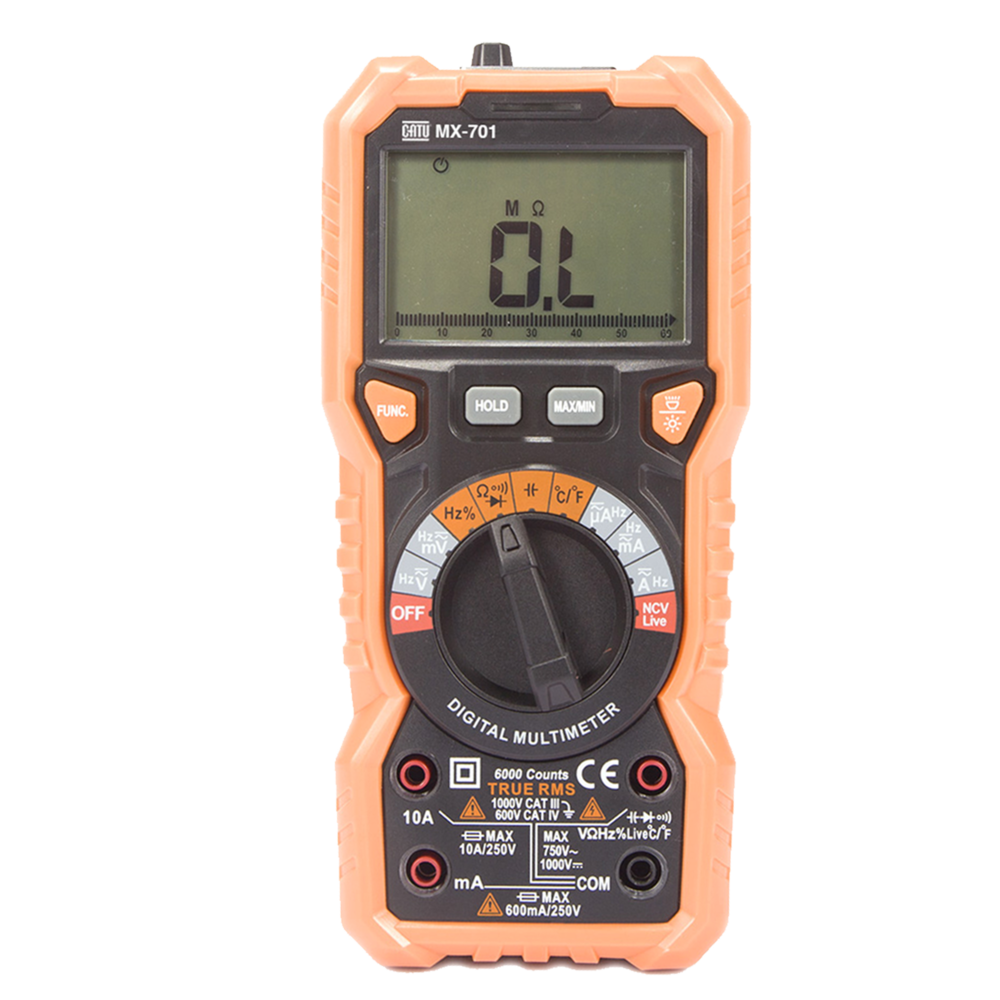

 MX-701

Digital multimeter TRMS

The MX-701 is a 3 1/2 digit LC digital multimeter.
It measures voltages up to 750 V AC and 1000 V DC, AC and DC currents up to 10 A as well as resistances, capacitances and temperature.
It can also be used to check electronic transistors.

The MX-701 is user-friendly and features auto-calibration, auto power-off, max. measurement, value storage and backlighting.

Application:

  • Measures voltage (AC/DC), current (AC/DC), resistance, inductance and temperature.
  • DC voltage: 600 mV/6/60/600V/1000 V ± (0.8% + 5d), 1000 V ± (0.5% + 3d)
  • AC voltage: 600 mV/6/60/600/750 V ± (1% + 5d), 750 V ± (0.8% + 5d)
  • DC current: 600mA/6 000mA/60mA/600mA ± (1.2% + 3d), 10A ± (1.2% + 3d)
  • AC current: 600mA/6 000mA/60mA/600mA ± (1.5% + 3d), 10A ± (1.5% + 3d)
  • Resistance: 600Ω ± (1.0% + 3d), 6KΩ/60KΩ/600KΩ ± (1.0% + 3d), 6MW ± (1.5% + 3d), 60MW ± (1.5% + 3d)
  • Temperature (with probe, supplied): -20°C-1000°C/ 0-1800°F from -20 to 0°C/-0 to +50°F ±(5% + 3d), from 0 to 400°C/50 to 750°F ±(1% + 2d), from 400 to 1000°C/750 to 1800°F ±(2% + 3d)
  • Continuity: by buzzer (<30W)
  • Capacitance: 10nF ±(4.0% + 5d), 100nF/1μF/10μF/100μF ±(4.0% + 5d), 1000mF ±(4.0% + 5d), 10/100mF±(5.0% + 5d)
  • Diode control
  • Transistor control

Features:

  • Temperature (with the temperature probe): -20°C-1 000°C/ -4°F-1 800°F.
  • Impact resistant elastomeric shell.
  • True RMS response.
  • Continuity & Diode test
  • LCD display with backlight
  • Data hold
  • Non contact function NCV
  • High voltage LED indication
  • Flashlight enables measurements in dark easier
  • Auto power off
  • Battery: 2 x 1,5 V (AA)
  • Dimensions: 188 x 88 x 54 mm
  • Weight: 320 g (with battery)

Composition :

  • 1 multimeter in cardboard box
  • Batteries: 2 x 1.5V LR 06 (AA)
  • 2 thermometer probes.
  • 2 test probes with angled connector IP2X
  • 1 user's guide





Data Sheet Doc EU



1 Products found
Reference Dimensions (mm) Weight (kg) Category
MX-701 182 x 82 x 55 mm 0,36 CAT III 1 000 V CAT IV 600 V
