MT 9804 P

MT-9804-PMT-9804-P

 MT-9804-P

Standards
IEC 61230
Earthing and short-circuiting equipment, Icc 10 kA/1s

Application :

  • Earthing and short-circuiting equipment for station.
  • Icc 10 kA/1s.

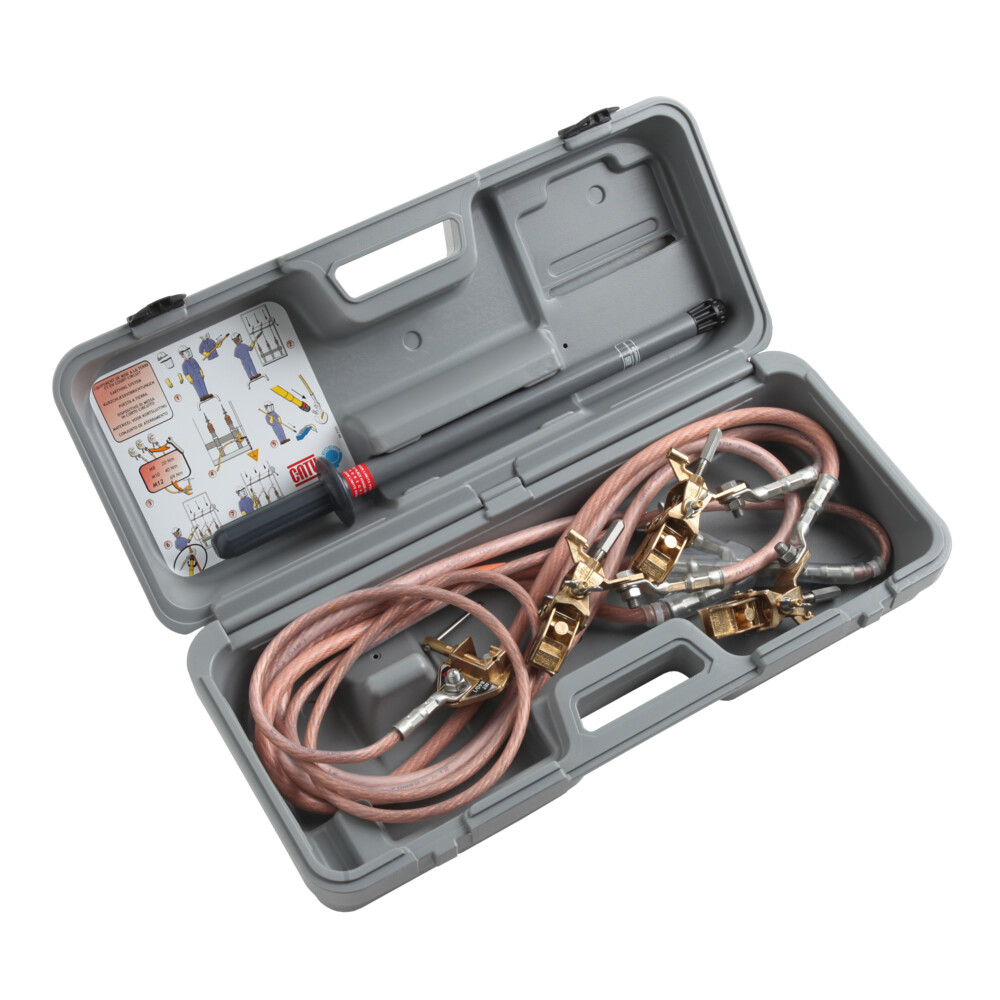

Features / Composition :

  • 3 clamps MT812C. Capacity: diameters from 5 to 16 mm and flat up to 16 mm thickness.
  • 3 swivelling clamps EMCC2851H. Capacity: diameters from 5 to 34 mm.
  • 1 earth clamp MT840/1. Capacity: diameters from 6 to 25 mm and flats up to 25 mm thickness.
  • 3 PVC insulated copper short-circuit cables 35 mm² section, length 0.75 m.
  • 1 earthing cable in PVC insulated copper with 16 mm² cross section, length 2.5 m.
  • 1 telescopic pole MT830P.
  • 1 carrying case.

Data Sheet user guide1 user guide2



Reference Dimensions (mm) Weight (kg)
MT-9804-P 720 x 300 x 175 12
