MT 5805 870

MT-5805-870MT-5805-870

 MT-5805-870

Standards
IEC 61230

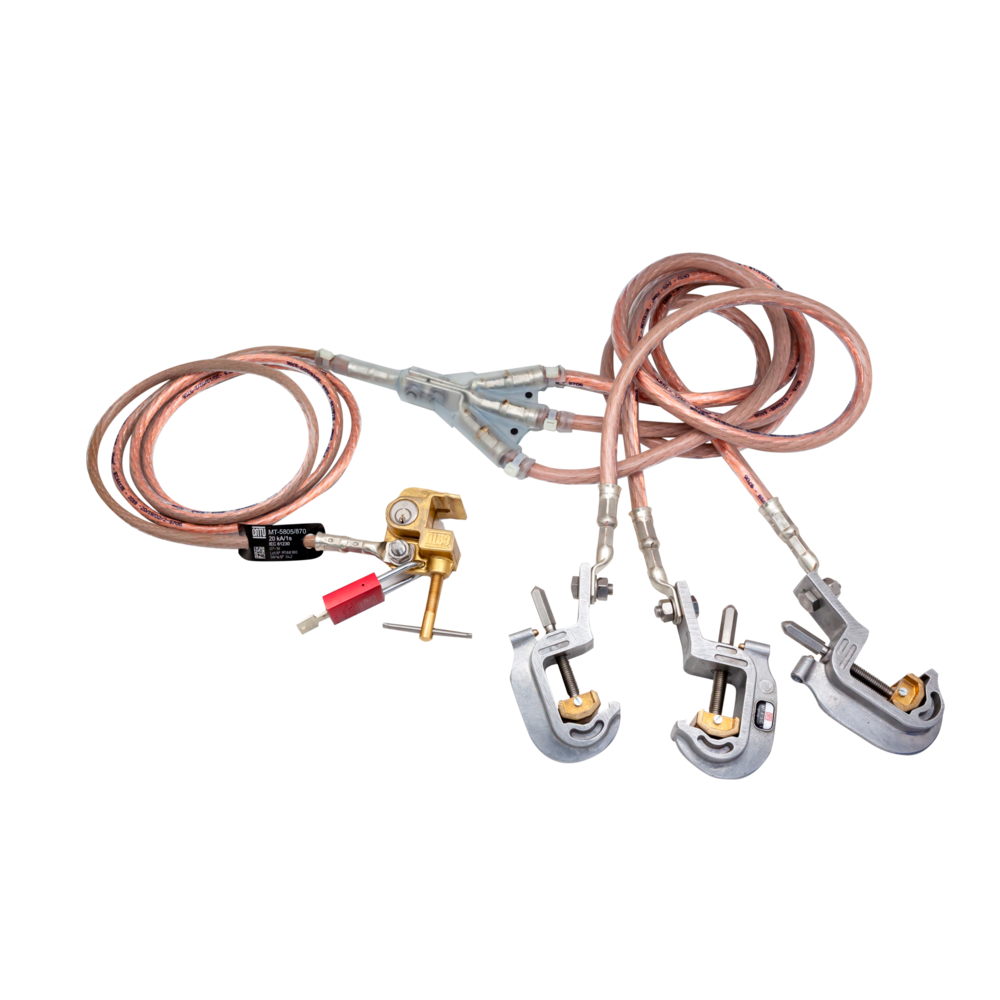

Earthing and short-circuiting Equipment with locking clamp

Application :

  • Portable equipment for overhead networks.
  • Icc: 20 kA/1 s.

Features :

  • MT-815-C conductor clamps with 12 mm type C hexagonal tip on flat surfaces.
  • Clamp capacity: round from 5 to 35 mm and flat from 5 to 40 mm.
  • Plastic carrying case.
  • Lockout earth vice prevents forgetting the MALT in place before powering up again.

Composition :

  • 3 pliers for conductors MT-815-C
  • 1 MT-870 lockout earth vice
  • 1 set of 3 short-circuit cables, 70 mm² cross section, 1.5 m long, PVC-insulated.
  • 1 Malt cable, 35 mm² long. 2.5 m PVC insulated.



Data Sheet



1 Products found
Reference Dimensions (mm) Weight (kg)
MT-5805/870 670 x 420 x 200 8
